Description
Specifications:
- MFI certification iBC-14-00417
- Built-in iBeacon firmware
- BLE micro controller NRF52810
- Nine choices for TX power setting

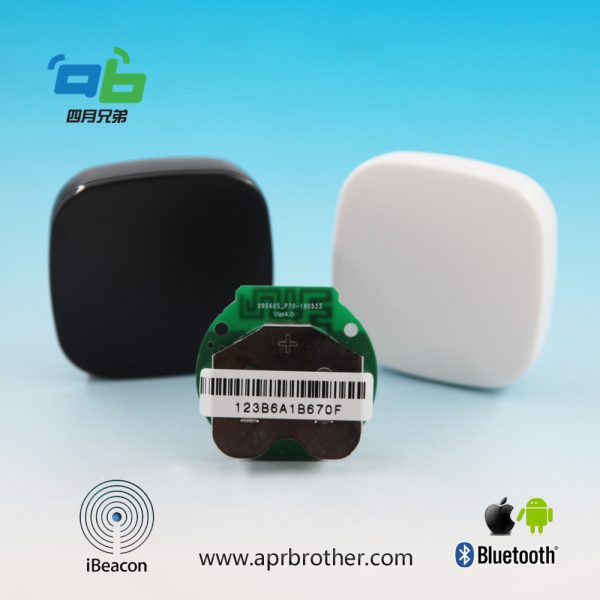

- Built-in a coin battery holder
- BLE technology compatible
- Accurate digital RSSI
- AES security coprocessor
iBeacon Descriptions:
- Run standalone as iBeacon, External host is not required.
- Application for advertisement and location
- Built in pairing password to prevent others to modify the settings
- Support customize your own iBeacon configuration including UUID etc.
- Tx Power configurable
- Advertising frequecy configurable
- Support upgrade firmware through OAD (air upgrade)
- Built in JTAG port for customized other application firmware as a standalone system
| Item | Value | Remarks |
| Firmware | iBeacon | |

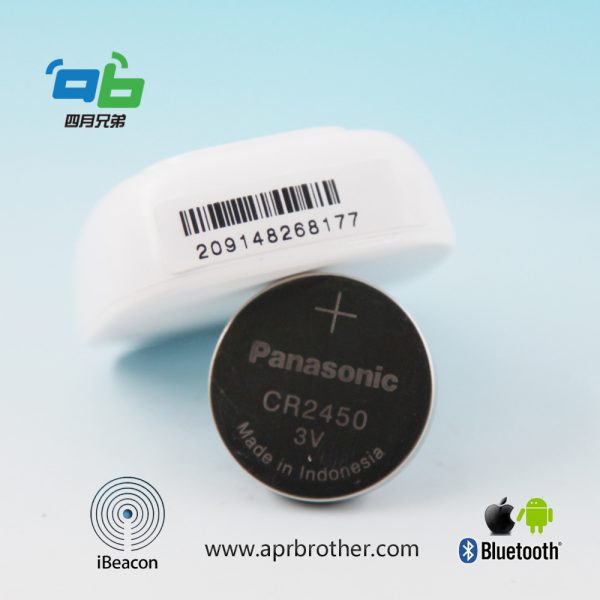

| Battery model | CR2450 | Coin battery, 500~ mAh |
| Operation Frequency | 2400-2483.5MHz | Programmable |
| Frequency Error | +/- 20KHz | |
| Modulation | Q-QPSK | |
| Standby current | 100uA | Depends on duty cycle/broadcasting frequency |
| Broadcasting Frequency | 900mS | Duty cycle |
| Output Power | 0 dBm | Default setting, programmable |
| Receiving Sensitivity | -93dBm | High gain mode |
| Transmission distance | 26 meters | BER<0.1%, Open space |
| Antenna | 50ohm | On board/ PCB Antenna |

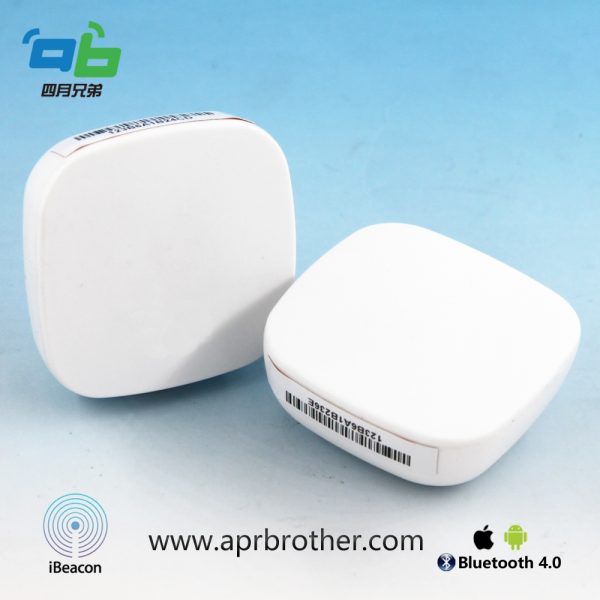

| Size | 31.08mm*31.08mm*9mm | case size:39mm*39mm*15mm |
| Operation Voltage | 2.0-3.6V | Dx |
Default setting:
Pairing password: 195660

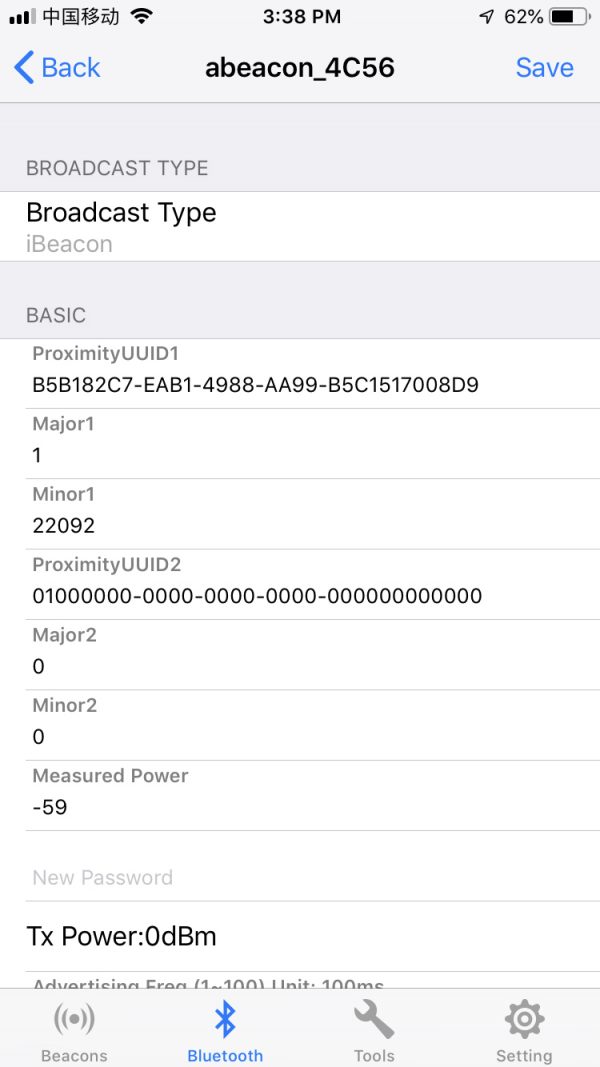

How to modify iBeacon parameters :
You could modify the UUID/Major/Minor by our Aprilbeacon.app
Applicatin Scenes:
- Navigation and tracking
- Push store coupons
- Wisdom tourism
- indoor/ outdoor navigation
For bulk order, please contact us for discount. zhengzeyi@aprbrother.com or skype: aprilbeacon or wechat: 13661293819
