Description

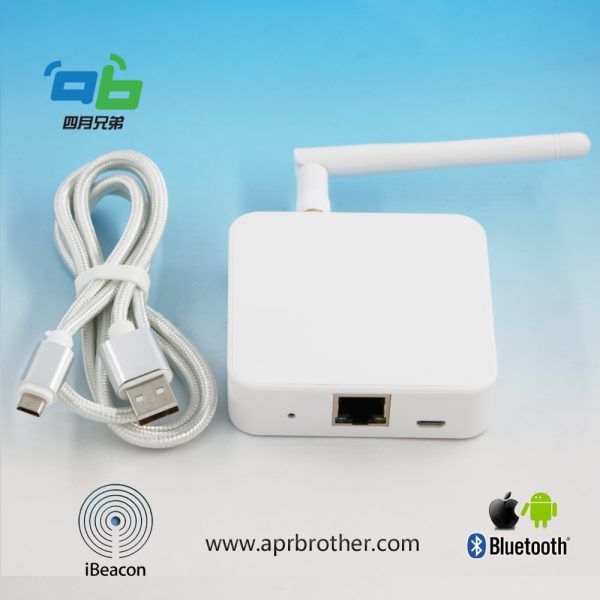

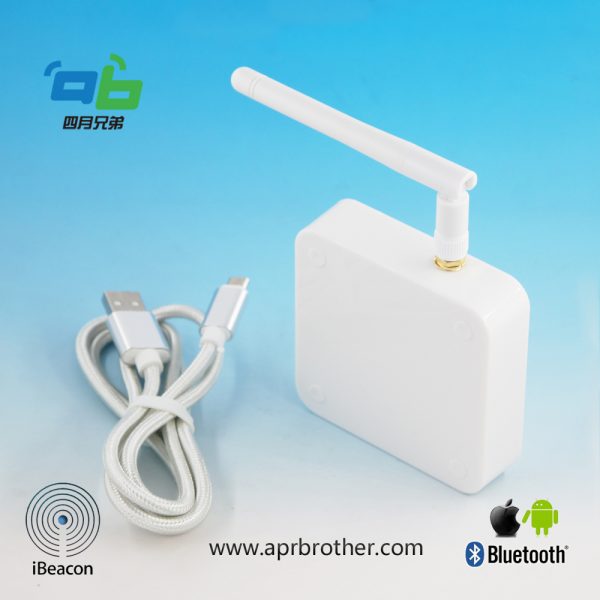

AB BLE Gateway V4 is a BLE to gateway and bridge. The gateway reads iBeacon and Eddystone like beacon or customized Tag format and sends to local TCP server or internet HTTP/MQTT server.
User can configure the transmit period and server information through a simple HTTP API.
Note: There are black and white case availalbe. Please leave message to specify case color.
Features
- Size: 72mmx74mmx20mm
- Input: DC 5V/1000mA, micro-USB or Standard POE 48V
- Operating temperature: -20’C to 60’C
- Reads multiple BLE devices in the same time
- Support WebSocket/HTTP/MQTT protocol
BLE
- BLE is based on NRF52840
- BLE with on board PCB antenna
- Bi-direction: Reads message advertised from BLE
- devices and/or advertise command to BLE
- devices(not standard, by request)
- 30M range in open space
Wi-Fi
- WiFi is based on ESP32
- Support 802.11 b/g/n/e/i（802.11n，Speed 150 Mbps）
- 2.4GHz frequency band
- Transmit power:
- +20dBm @802.11b
- +14dBm @802.11n
- WiFi data rate up to 150Mbps
- WiFi with on board PCB antenna
- HTTP api for configuration
- Connect to Cloud server or local server
- 100M range in open space
Ethernet
- full-duplex 10-BASE-T/100BASE-TX transceiver and supports 10Mbps (10BASE-T) and 100Mbps (100BASE-TX) operation.
- 15W Power Over Ethernet Meets IEEE 802. 3 af Specifications
Applications
- iBeacon/Eddystone/tag receiver for location tracking
- BLE sensor reader for sensor network
- Building automation
- Health and wellness monitoring
- Cycling, biking
- Security
- Location tracking
- Access management
- Advertisement
- Industrial automation
- Indoor Location
- Meeting sign in
- Check in
- Parking & Checking in
- Home automation
-
