Description

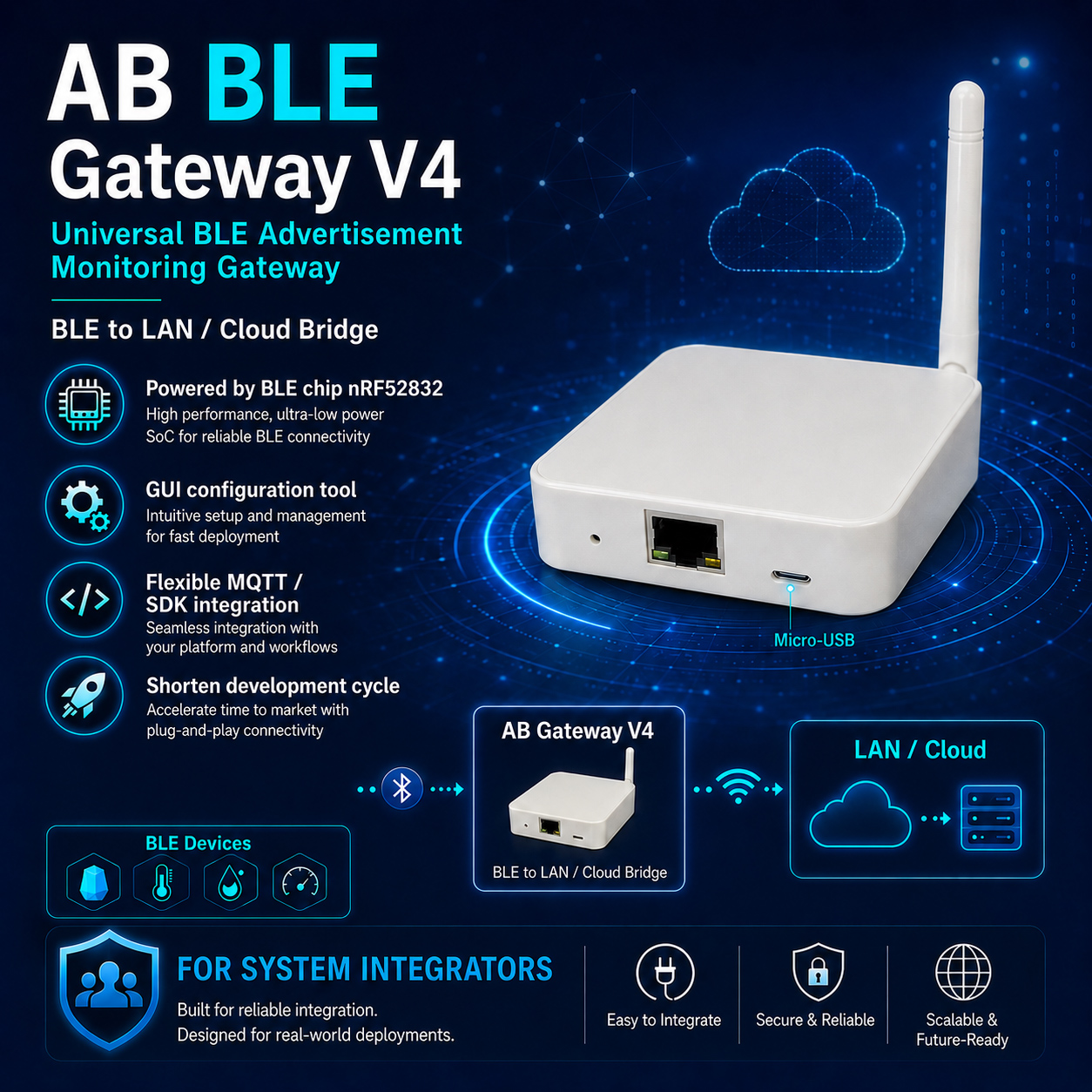

AB BLE Gateway V4 is a BLE to gateway and bridge. The gateway reads iBeacon and Eddystone like beacon or customized Tag format and sends to local TCP server or internet HTTP/MQTT server.
User can configure the transmit period and server information through a simple HTTP API.

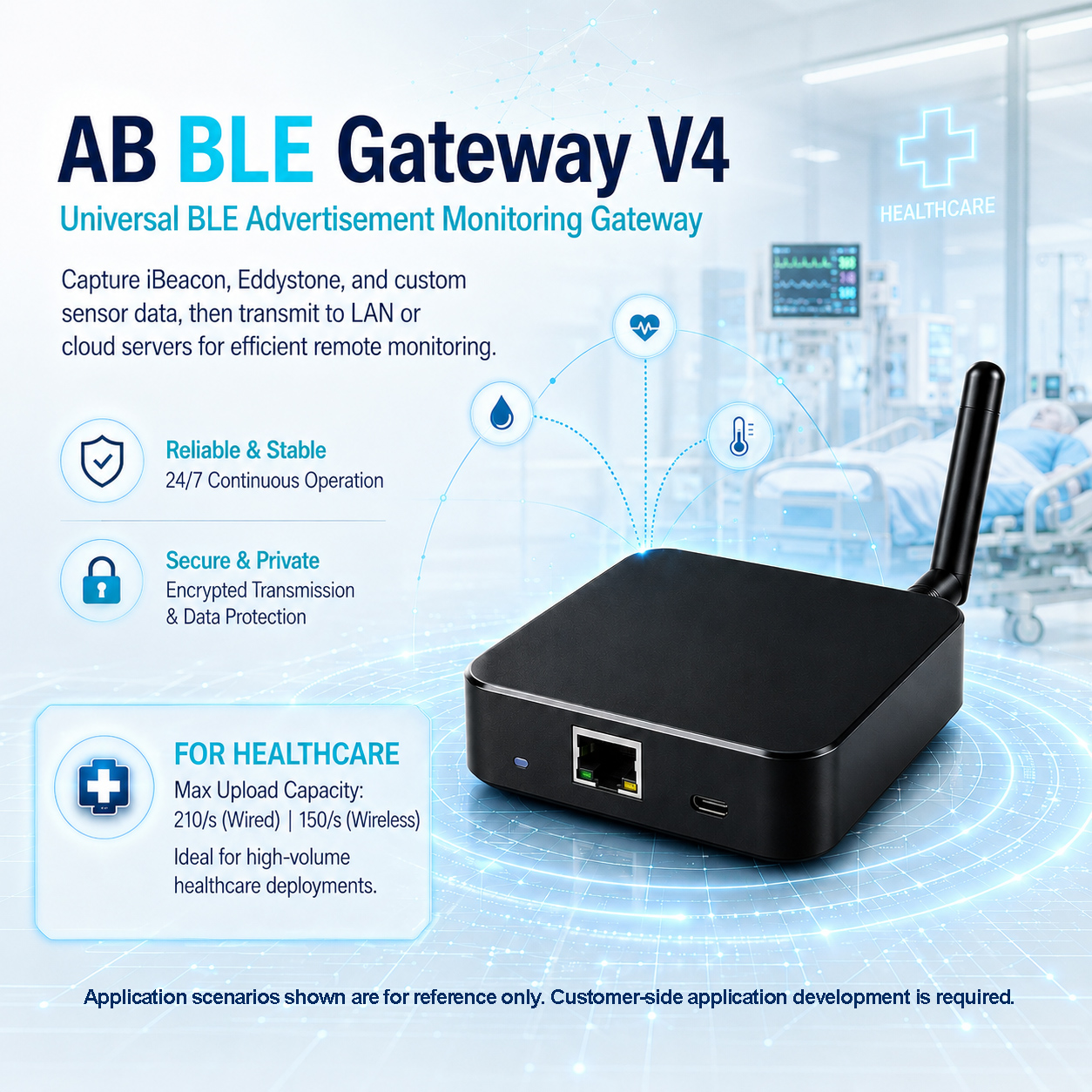

Note: There are black and white case availalbe. Please leave message to specify case color.
CE, FCC certification available.
We’ve recently released firmware v3.1.0i, which adds a new BLE connection mode alongside the existing scanning mode.
What’s new:
- Supports both BLE scanning and connection modes (one mode at a time)
- Connects to up to 16 BLE peripheral devices simultaneously
- Opens up new possibilities for BLE sensors, fitness devices, and IoT applications
- Updated configuration tool v1.3.25
Previously, the gateway was mainly used for collecting BLE advertising data. With the new connection mode, it can also support applications that require direct BLE connections.
Performance
- Scan duration = 1 second
- Upload maximum 210 advertsing data per second with Ethernet wire
- Upload maximum 150 advertsing data per second with WiFi connection
Features
- Size: 72mmx74mmx20mm
- Input: DC 5V/1000mA, micro-USB or Standard POE 48V
- Operating temperature: -20’C to 60’C
- Reads multiple BLE devices in the same time
- Support WebSocket/HTTP/MQTT protocol
BLE
- BLE is based on NRF52832
- BLE with on board PCB antenna
- Bi-direction: Reads message advertised from BLE
- devices and/or advertise command to BLE
- devices(not standard, by request)
- 30M range in open space
Wi-Fi
- WiFi is based on ESP32
- Support 802.11 b/g/n/e/i（802.11n，Speed 150 Mbps）
- 2.4GHz frequency band
- Transmit power:
- +20dBm @802.11b
- +14dBm @802.11n
- WiFi data rate up to 150Mbps
- WiFi with on board PCB antenna
- HTTP api for configuration
- Connect to Cloud server or local server
- 100M range in open space
Ethernet
- full-duplex 10-BASE-T/100BASE-TX transceiver and supports 10Mbps (10BASE-T) and 100Mbps (100BASE-TX) operation.
- 15W Power Over Ethernet Meets IEEE 802. 3 af Specifications
Applications
- iBeacon/Eddystone/tag receiver for location tracking
- BLE sensor reader for sensor network
- Building automation
- Health and wellness monitoring
- Cycling, biking
- Security
- Location tracking
- Access management
- Advertisement
- Industrial automation
- Indoor Location
- Meeting sign in
- Check in
- Parking & Checking in
- Home automation
-
